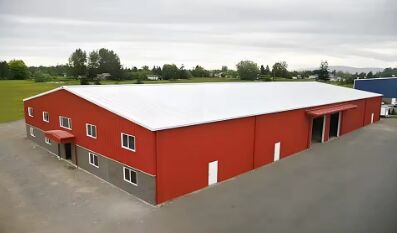

High Quality Pre Engineered Steel Buildings Structure Aircraft Hangar Material Company Hot Sale Modern Prefabricated Warehouse with Welded Frame Custom Made Solutions 3D Model Design CE Certification
| محل منبع | هبی، چین |
|---|---|
| نام تجاری | BAODU |
| گواهی | ISO9001,CE |
| شماره مدل | انبار فولاد |
| سند | بروشور محصول PDF |
| مقدار حداقل تعداد سفارش | 1000 متر مربع |
| قیمت | $45-65square meter |
| جزئیات بسته بندی | به طور کلی، برای سازه های فولادی، ما از بسته بندی قاب فولادی استفاده می کنیم تا کالاها شکسته نشوند. |
| زمان تحویل | 30 روز |
| شرایط پرداخت | L/C، D/A، D/P، T/T، وسترن یونیون، مانی گرام |
| قابلیت ارائه | 100000 متر مربع / متر مربع در ماه |
برای نمونه و کوپن رایگان با من تماس بگیرید.
واتساپ:0086 18588475571
ویچت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xجزئیات محصول
| نام محصول | شرکت مواد آشیانه سازه های فولادی پیش مهندسی شده فروش داغ انبار پیش ساخته مدرن طراحی مدل سه بعدی گواه | خدمات پردازش | خم کردن، جوشکاری، جوشکاری، برش، مشت زدن |
|---|---|---|---|
| طراحی | SAP2000/AutoCAD/PKPM/3D3S/TEKLA | قابلیت حل پروژه | طراحی مدل سه بعدی، راه حل کلی برای پروژه ها |
| اندازه | با توجه به نیاز مشتری | مواد | فولاد کم کربن Q235B/Q345B |
| بسته بندی | بسته بندی استاندارد | سقف و دیوار | راه راه / EPS / PU / پشم سنگ / پشم شیشه |
| قابلیت حمل و نقل | به راحتی با کامیون یا کشتی حمل می شود | پنجره | پنجره کشویی آلیاژ آلومینیوم |
| خدمات پس از فروش | پشتیبانی فنی آنلاین، قطعات یدکی رایگان | ||
| برجسته کردن | prefab steel warehouse with welded frame,custom aircraft hangar steel structure,CE certified prefabricated warehouse design,custom aircraft hangar steel structure,CE certified prefabricated warehouse design |
||
توضیحات محصول
High Quality Pre-Engineered Steel Buildings
Custom engineered steel structures including aircraft hangars, warehouses, and industrial facilities with welded frames, 3D model design, and CE certification.
Material Specifications
| Project | Steel Structure Building |
|---|---|
| Size | According to Customer Need |
| Main Steel Structure Frame | |
| Column | Q235B, Q355B Welded H Section Steel |
| Beam | Q235B, Q355B Welded H Section Steel |
| Secondary Steel Structure Frame | |
| Purlin | Q235B C and Z Type Steel |
| Knee Brace | Q235B C and Z Type Steel |
| Tie Tube | Q235B Circular Steel Pipe |
| Brace | Q235B Round Bar |
| Vertical and Horizontal Support | Q235B Angle Steel, Round Bar or Steel Pipe |
| Roof and Wall System | |
| Roof Cladding | Steel Sheet or Sandwich Panel (EPS, PU, Glass Wool, Rock Wool) |
| Wall Cladding | Steel Sheet or Sandwich Panel (EPS, PU, Glass Wool, Rock Wool) |
| Door | Sandwich Panel Sliding Door/Rolling Metal Door |
| Window | Aluminium Alloy Window/PVC Panel Window |
Technical Parameters
Please provide the following information for quotation:
- Project Progress: Is land purchased? Is it licensed by the government?
- Usage: warehouse, workshop, showroom, etc.
- Location: Country where building will be constructed
- Local Climate: Wind speed, snow load (maximum wind speed)
- Design: Provide design drawing or request our design services
- Dimension: Length × width × height
- Crane Beam: Requirement for internal crane beam
- Roof and Wall: Panel material selection
- Windows and Doors: Material, quantity, and type specifications
Key Components
- Cost-saving and transportation-convenient designs
- Main beam and column made from qualified steel
- Resists heavy wind (140km/h) and 8-grade earthquakes
- Easy assembly and disassembly without damage
- Wide applications in various construction scenarios
- Environmentally friendly and recyclable materials
Production Process
Steel structure buildings feature main load-bearing members made of steel, including columns, beams, foundations, and roof trusses. Roof and wall systems utilize various materials such as sandwich panels, steel sheets, wire mesh, and foam cement boards for different applications.
Connection Method: Columns connect with foundations via pre-embedded anchor bolts. Beams and columns connect using high-intensity bolts.
Construction Advantages:
- Custom design for specific purposes and environmental conditions
- Long lifespan exceeding 50 years
- Quick and easy installation with economic efficiency
- Relocatable and recyclable structures
- Strong seismic and wind resistance capabilities
Project Cases
Quality Control
We implement whole-process quality management with strict supervision from raw materials to installation. Our professional quality inspection team uses advanced equipment including German GS1000 vacuum spectrometer and high-frequency infrared carbon sulfur analyzer.
Certifications
Company Profile
Baodu International Advanced Construction Material Co., Ltd was established in January 2010 with offices in Beijing and factory in Hebei, China. We specialize in industrial noise treatment, steel structures, sandwich panels and prefab houses.
Annual production capacity includes 6 million square meters of acoustic sandwich panels, 100,000 tons of steel structures and 1 million square meters of floor decking sheet. Our products serve over 30 countries worldwide.
Our professional design team includes 5 senior engineers, 20 engineers, and 35 technicians with over 10 years' experience. We hold multiple energy saving patents, construction qualifications, CE certification and Russian GOST certification.
Notable projects include the military parade village for China's 60th anniversary and Beijing Daxing International Airport. We've also undertaken international projects in Pakistan and Dubai under China's "One Belt, One Road" initiative.
Packaging and Shipping
Packaging Details:
- Steel structure components with proper protection
- Sandwich panels covered with plastic film
- Bolts and accessories in wooden boxes
- Standard ocean transport packaging
- Professional loading with cranes and forklifts
Frequently Asked Questions
1. How is your quality control?
Our products have obtained certifications from ISO9001, CE.
2. Can you provide design services?
Yes, we have an engineering team that can design according to your requirements. We provide construction drawings, structural drawings, processing details, and installation drawings for confirmation at different project stages.
3. Do you provide samples?
Yes, we can provide samples. Customers are responsible for freight costs.
4. What is the delivery time?
Delivery time depends on building size and quantity, typically 15-30 days after payment receipt. Large orders allow for partial shipments.
5. Do you offer installation services?
We provide detailed construction drawings and installation manuals. If needed, we can send engineers to assist with installation.
6. How can I get your quotation?
Contact us online or via email. Provide drawings or building dimensions (length, width, eave height) and local weather conditions for accurate quotation and drawings.
7. How is your payment method?
30% deposit before production, remaining 70% upon bill of lading copy or letter of credit.
